Product name: Laser sandblasting
Model: JD - LS2000
Product introduction

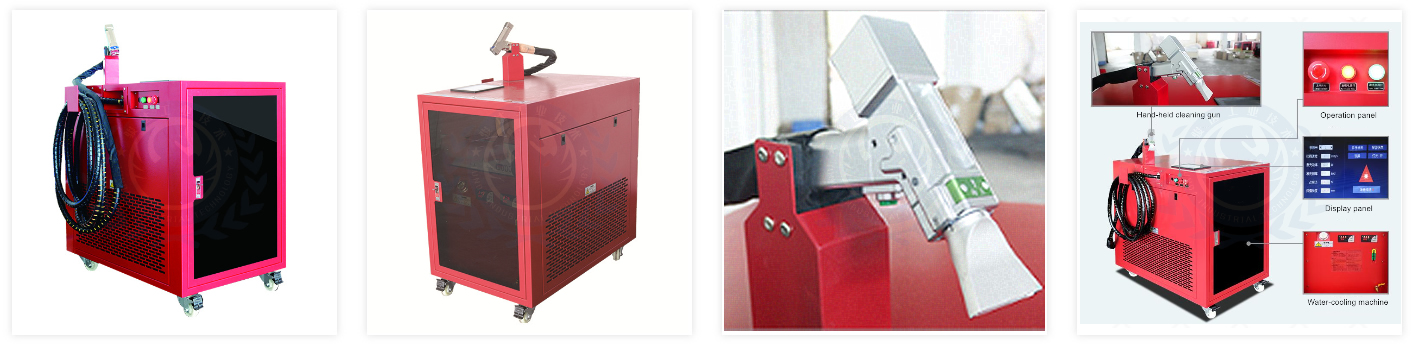

Jd-ls2000 laser sandblasting machine is composed of laser, laser optical system and control system, providing ≤2000W (can be customized) hand-held laser cleaning machine, it can meet the surface laser rust removal, laser oil removal, laser paint removal, laser film removal, in addition to coating laser cleaning process.
Product advantage
I. Adopt the structure of one machine, it integrates laser, chiller, software control into one, has a small footprint, convenient movement, strong functional and other unique advantages.
2. Non-contact cleaning, no damage to the base material parts.
3. Precise cleaning,it can achieve precise position, precise size selective cleaning without any chemical cleaning agent, no consumables, safe and environmental friendly.
4. Simple operation, just power on, high cleaning efficiency, time-saving, stable laser cleaning system , low working environment requirements, high system stability, almost no maintenance.
5. Hand-held structure is simple and light, ergonomic design, easy to operate, removable front section, it can achieve automatic focus.
Working mechanism
Laser cleaning was used to clean ancient buildings and cultural relics in early Europe. With the systematic development of industry, its application gradually extended to the field of industrial manufacturing. The basic principle is to use high frequency and high energy laser pulse irradiation on the surface of the workpiece, so that the surface oil, rust or coating instant gasification, evaporation, vibration peeling, can achieve a high speed, effective removal of surface adhesion and surface coating; No detergent, no medium, no dust, no water when cleaning. Auto focus, surface cleaning, gently cleaning. Remove resin, grease, rust, coating, oil paint, etc.
Advantages of laser cleaning
Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid-solid powerful impact cleaning, high-frequency ultrasonic cleaning, laser cleaning has obvious advantages.
1, laser cleaning is a green cleaning method, do not need to use any chemical agents and cleaning liquid, cleaning waste is basically solid powder, small size, easy to store, recyclable, can easily solve the environmental pollution problem caused by chemical cleaning;
2, the traditional cleaning method is often contact cleaning, there is a mechanical force on the surface of the cleaning object,so it damages the surface of the object or the cleaning medium attached to the surface of the object to be cleaned,which can not be removed, but producing secondary pollution, laser cleaning non-abrasive and non-contact make these problems readily solved;
3, laser can be transmitted through optical fiber, with the manipulator and robot, it’s convenient to achieve remote operation, it can clean parts that are not easily reached by traditional methods, so that it can also ensure the safety of personnel when used in some dangerous places;
4. Laser cleaning can remove various types of pollutants on the surface of various materials, and achieve the cleanliness that conventional cleaning cannot achieve. Moreover, it can selectively clean the contaminants on the material surface without damaging it;
5, laser cleaning is high efficiency, time-saving;
6, Although the early one-time investment is high to purchase the laser cleaning system, the cleaning system can be used for a long time, the operation cost is low, only charge the electricity per hour.
Industry application
1, Application industry: machinery manufacturing, electronic devices, automotive industry, aerospace, kitchen and bathroom, hardware crafts, sheet metal shell, and many other industries.
2, cleaning materials: carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized plate, aluminum zinc plate, brass, copper and other metal fast cleaning



Maximum bearing power


The interface type


Laser wavelength range

1070 + 20

Collimating focal length


Focus on the focal length


Oscillation frequency


Use of mirror gas

The compressed air

The weight of the

About 2. 3 kg

Adjustable derusting surface


Overall dimensions


The power converter

220V, 50/60Hz

Optimal operating environment

Humidity 0-40°C, humidity 20%-80%
