Wet sand blasting cabinet water vapour sandblasting machine
* This type machine is suitable for precision work pieces surface treatment.
* It can make use of fine sand materials to blast.
* The sand materials can be recycled to use, and low sand materials consumption, little wear-tear of nozzle, low cost.
* Good confined, no powder dust pollution.
* The window is large and equipped with windshield wiper, making sure the clean visibility.
* The simple operation, few breakdowns
* Low noise
* This machine is made of stainless steel, so it is durable.
* It can add the rust inhibitor to the sand fluid, preventing iron work piece rusting.

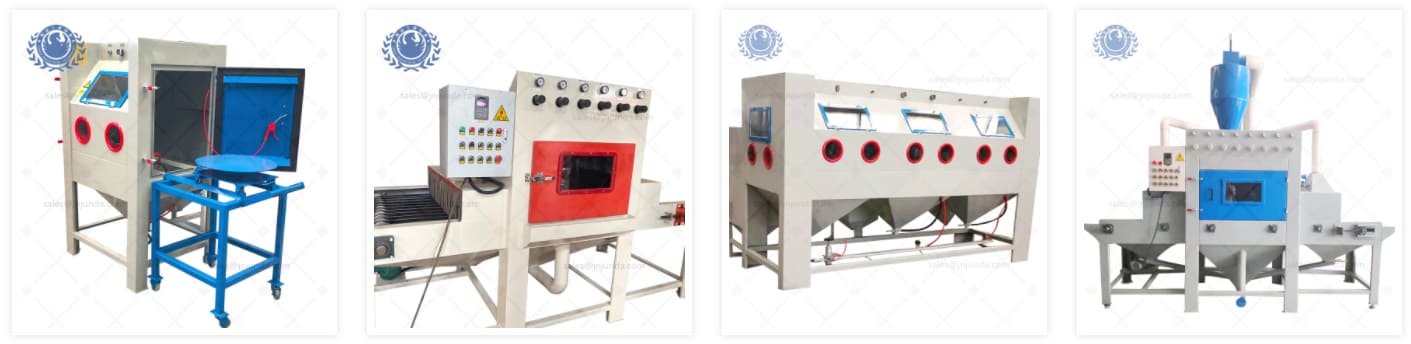

Hot Sale Dry Sand Blast Cabinet Sandblaster for Heavy Items
The heavy duty blast cabinet with turntable is specially designed for blast and cleaning heavy and large product,statue, car wheels, etc.
The humanized turntable design provides 360 degree rotating action, which release the difficulty for users to blast heavy product overall, as there is no need of manual movement.
An loading cart can be ideally equipped to push the products from outside to inside of the blasting cabinet at ease.
Our blasting cabinet were made in house by rich experienced production team of JUNDA. To pursue best performance, the machine body is steel plate welded with powder coated surface, which is more durable, wear-resistant and lifelong than traditional painting, and the main components are famous imported brand, by all of which we ensure 1 year warranty period for any quality problem.
The Detailed Features of Heavy-duty Sandblast Cabinet
A dust removing system of the sandblasting machine thoroughly collects dust which creates a clear working view, ensures the recycled abrasive is pure and the air discharged to the atmosphere is dustfree.
Each blast cabinet includes durable aluminum alloy casting blast gun with 100% purity boron carbide nozzle. An air blowing gun to clean remaining dust and abrasive after blasting.
Foot pedal switch to control the work of blasting gun, which reduces the user's fatigue, facilitates the operation and ensures the safety
The used abrasives is delivered to the bottom funnel, then sucked to the blast gun for continuous utilization, such recycling of abrasive saves cost a lot.
The turntable size can be customized according to the product specification, also designed to be manual or automatic rotating for selection.
| Item | Unit | JD-6050NC | JD-9060NC | JD-9060HC | JD-9070NC | JD-9070HC | JD-9080NC | JD-9080HC |
| Outline dimension | mm | 600X900X1500 | 900X1000X1600 | 900X1000X1900 | 900X1000X1600 | 900X1000X1900 | 900X1200X1600 | 900x1200X1900 |
| Working chamber size | mm | 600X500 | 900X600 | 900x600 | 900X700 | 900x700 | 900X800 | 900x800 |
| Worktable diameter | mm | 600X500 | 900X600 | 900x600 | 900X700 | 900x700 | 900X800 | 900x800 |
| Loading weight | kg | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Power supply |
|
220V, 50HZ | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ | 220V, 50HZ |
| Fan for dust collector | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Lighting device | w | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Compressed air pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Compressed air consumption | M3/min | 1 | 1 | 3 | 1 | 3 | 1 | 3 |
| Working pressure(Gun) | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Air consumption(Gun) | M3/min | 1-1.2 | 1-1.2 | 1-1.2 | 1-1.2 | 1-1.2 | 1-1.2 | 1-1.2 |
| Abrasive | garnet sand , glass beads, variety of abrasive | Garnet sand , glass beads, variety of abrasive | Garnet sand , glass beads, variety of abrasive | Garnet sand , glass beads, variety of abrasive |
Garnet sand , glass beads, variety of abrasive | Garnet sand , glass beads, variety of abrasive | Garnet sand , glass beads, variety of abrasive |
