Sandblasting Nozzle
-
Home >>Sandblasting Parts >> Sandblasting Nozzle
Boron carbide sand blasting nozzle is made of boron carbide material and
formed by straight hole and Venturi hot pressing. It has been widely used in
sand blasting and shot blasting equipment because of its high hardness, low
density, high temperature resistance, good wear resistance and corrosion
resistance.
Boron carbide nozzle characteristics：
1. Longer service life. Boron carbide nozzle has the longest life for sand
blasting and shot peening.
2. Lower cost: the service life outlast tungsten carbide by 3 times .
3. To reduce down time.
4. To maintain efficiency.
Boron carbide sand blasting nozzle | |
The available sand sand | steel shot, black aluminum oxide, white aluminum oxide, brown aluminum oxide, glass sand, silicon carbide, glass beads, plastic granules. |
The nozzle shape | |
Density | ≥ 2.46 g/cm3 |
Bending strength | ≥400 Mpa |
performance: | high corrosion resistance |

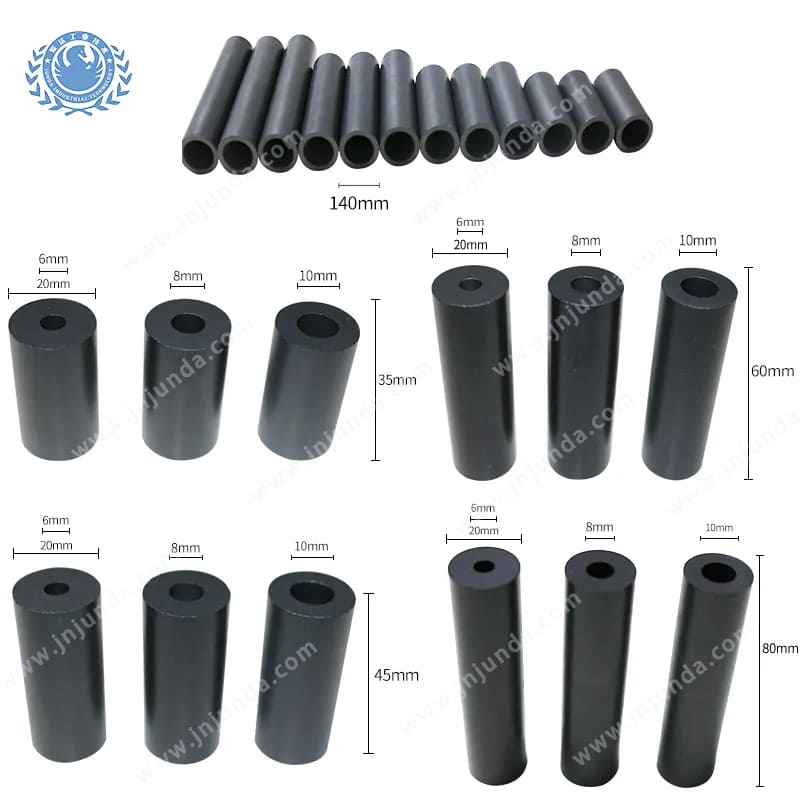

Model | size (mm) | |||||
Outer diameter | The inner diameter | On the wall thickness | The inner diameter | The wall thickness | ||
6*20*35 | 35 | 20 | 6 | 7 | 14 | 3 |
8*20*35 | 35 | 20 | 8 | 6 | 14 | 3 |
10*20*35 | 35 | 20 | 10 | 5 | 14 | 3 |
6*20*45 | 45 | 20 | 6 | 7 | 14 | 3 |
8*20*45 | 45 | 20 | 8 | 6 | 14 | 3 |
10*20*45 | 45 | 20 | 10 | 5 | 14 | 3 |
6*20*60 | 60 | 20 | 6 | 7 | 14 | 3 |
8*20*60 | 60 | 20 | 8 | 6 | 14 | 3 |
10*20*60 | 60 | 20 | 10 | 5 | 14 | 3 |
6*20*80 | 80 | 20 | 6 | 7 | 14 | 3 |
8*20*80 | 80 | 20 | 8 | 6 | 14 | 3 |
10*20*80 | 80 | 20 | 10 | 5 | 14 | 3 |
