The Root Cause

In ball mills and stirred mills, steel balls endure continuous impact and abrasion. Rapid wear typically stems from three imbalances:

1. Insufficient Hardness Low-hardness balls are easily scratched by ore or abrasives, leading to rapid material loss.

2. Insufficient Toughness Overly hard but brittle balls crack under high-impact conditions, generating fragments that contaminate the material.

3. Improper Heat Treatment Imprecise quenching and tempering leave residual internal stress, accelerating fatigue wear.

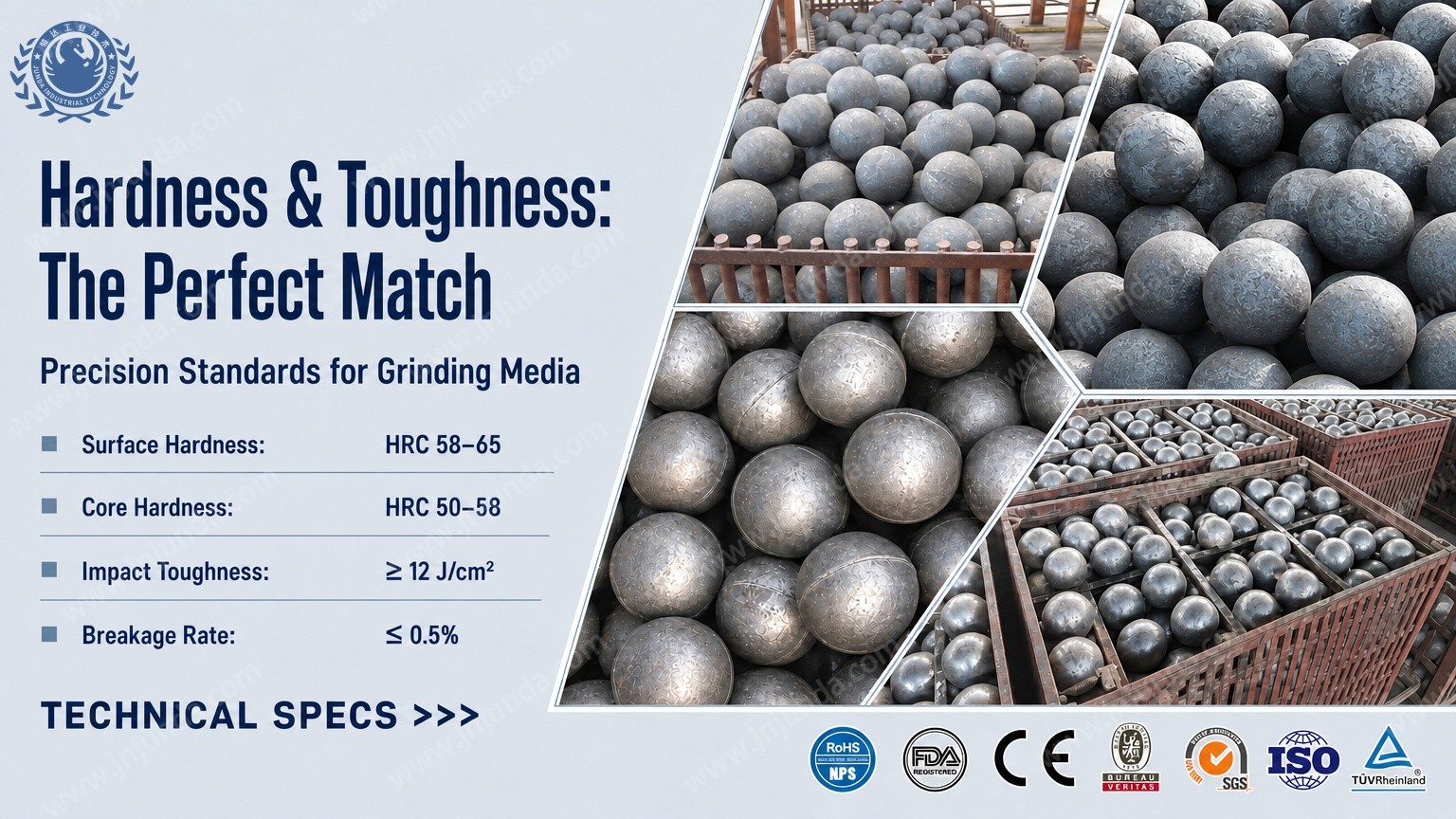

The Solution: Matching Hardness to Toughness

The core of high-quality grinding steel balls lies in precisely matching hardness with toughness. Recommended parameters:

Surface Hardness: HRC 58–65

Core Hardness: HRC 50–58

Impact Toughness: ≥ 12 J/cm²

Breakage Rate: ≤ 0.5%

Key Process Controls:

Alloy composition: Adding Cr, Mn, Mo improves matrix hardness and wear resistance.

Full-body quenching: Ensures uniform hardness from surface to core, preventing accelerated wear from a soft core.

Low-temperature tempering: Relieves quenching stress, restoring toughness while maintaining high hardness.

Real-World Value

Compared to standard steel balls, optimized grinding balls deliver:

Consumption reduced from 800–1200 g/t to 400–600 g/t

Breakage rate reduced from 1–3% to ≤ 0.5%

Lifespan extended by 40–80%

Reducing ball consumption per ton directly cuts the grinding cost per ton of ore.

Conclusion

Steel ball wear is not an unavoidable loss — it is a variable controllable through materials science. Choose the right hardness, match it with toughness, apply the right process — wear slows down, and costs follow.
